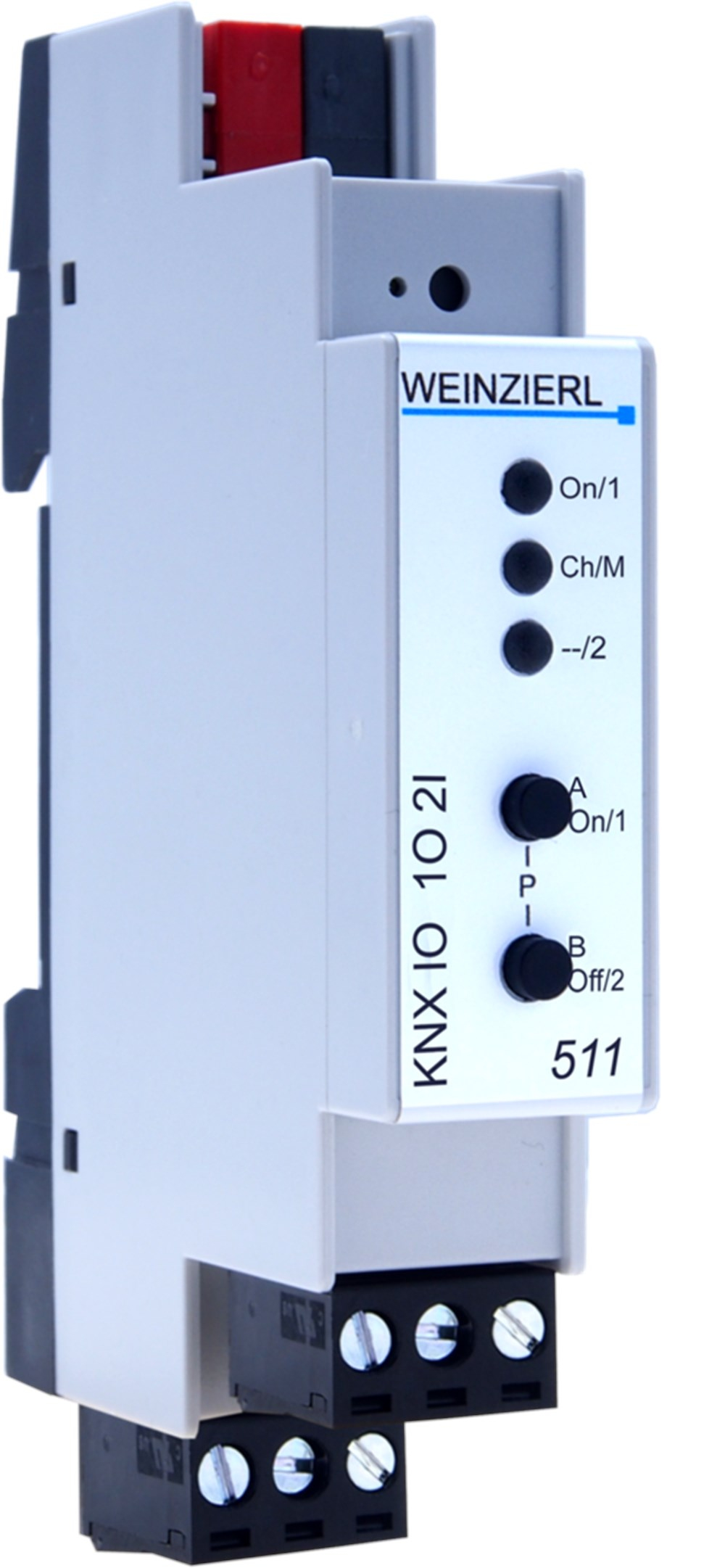

WEINZIERL KNX IO 511 (5232)

Mechanical data

• Housing: plastic
• DIN rail mounted device, width: 1 modules (18 mm)
• Weigth: approx 60 g

User Interface

• two keys for on device settings
• three multi color LEDs
• KNX programming LED and KNX programming key

KNX

• Device Model System B
• Compatible with ETS 4.2 (or higher)

Connectors

• Connector for KNX Bus (red / black)
• Pluggable screw connector (3 poles) for actuator channel 1
• Pluggable screw connector (3 poles) for input channel 2 and 3

Output channel (Actuator)

• Relay type: 230V~/8A, bi-stable
  Depending on load type (capacitive or inductive)
  the switching power can be reduced significantly.

Input channels (Binary in)

• Voltage: 12 .. 230 V=~
• Current: < 1 mA
