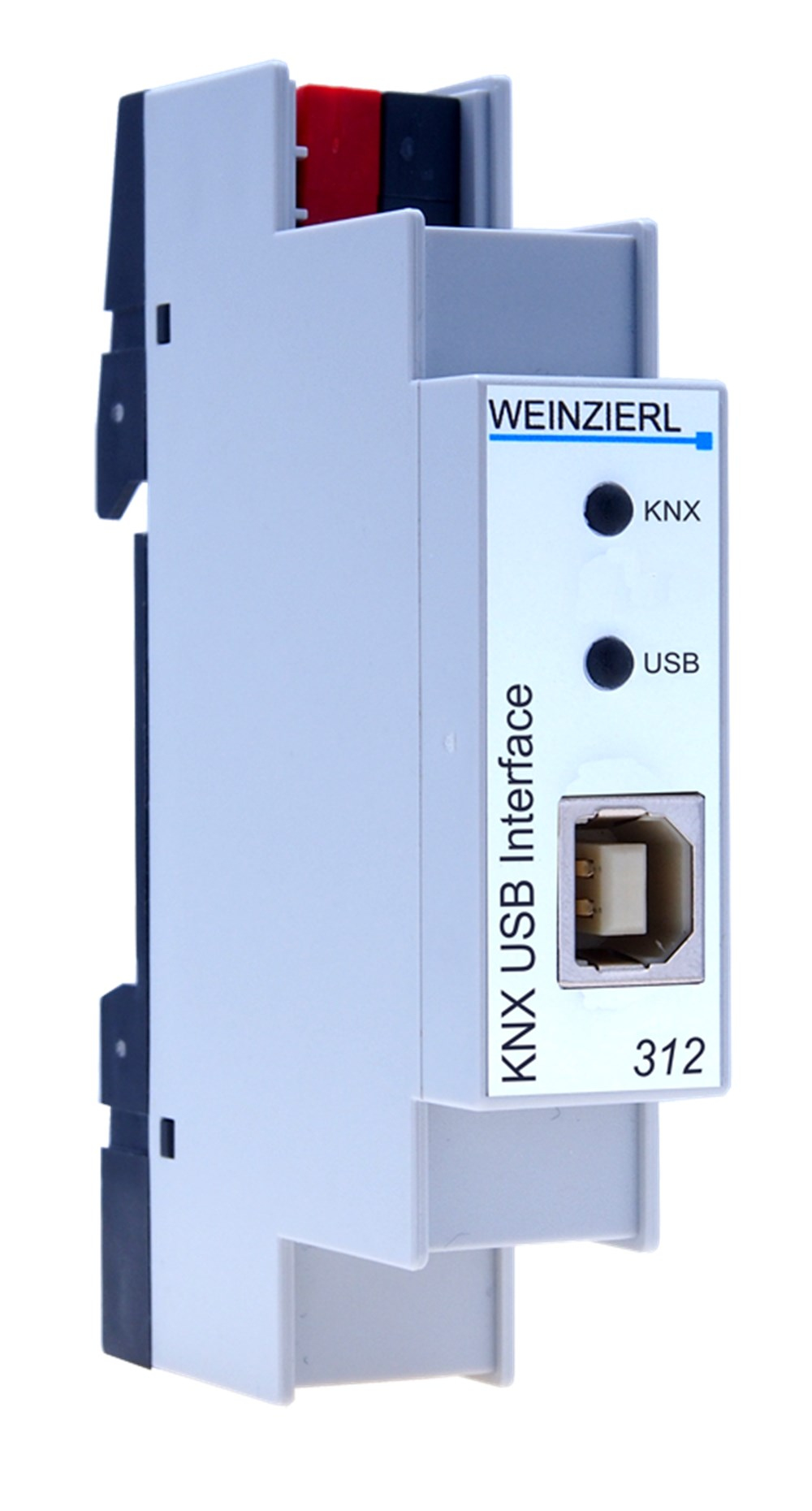

WEINZIERL KNX USB Interface 312 (Interface 312)

Mechanical data

• Housing: plastic
• DIN rail mounted device, width: 1 TE

Indicators

• Signal LED (green) for USB-connection
• Signal LED (yellow) for communication

Power supply

• The part of circuit for communication over USB is supplied by the connected PC / Laptop, correct operation is signalled by the green LED (USB).
  Power consumption: < 200mW
• The part of circuit for communication over EIB/KNX is supplied by EIB/KNX bus.
  Power consumption: < 300mW

Connectors

• KNX connector
• USB connector type B
• Wire length max. 5m

Compatibiliy

• ETS (Engineering Tool Software) ETS3 or higher
