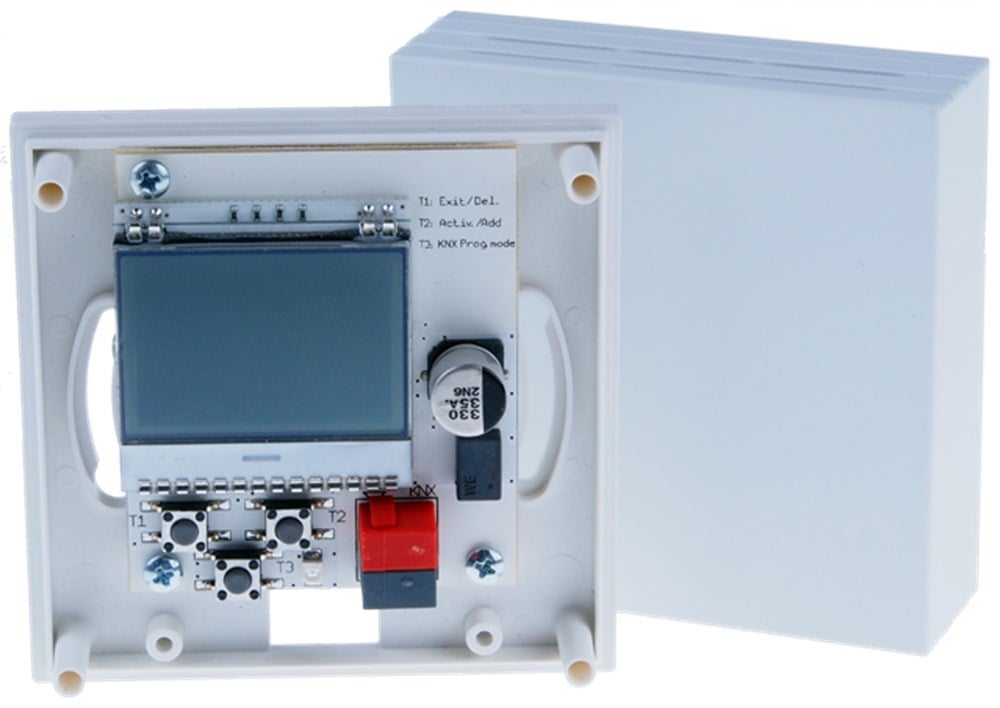

WEINZIERL KNX ENO 630 (5129)

he KNX ENO 630 is organized in 16 channels. Each channel can be assigned to one of the following functions:

• Switching and contact functions
  • Switching
  • Dimming
  • Shutter up/down
  • Scene
• Window contacts
• Window handles
• Key cards switches
• Ressure switches
• Temperature sensors
• Humidity sensors
• Light sensors
• Presence sensors
• Gas sensors
• Room control devices
• Automated counter devices
• Environmental sensors (weather station)
• Digital inputs

Control / logic:

• Timer
  • Delay
  • Tracking circuit

• Control
  • Lighting control

• Logical functions
  • Gates (e.g. AND, OR, XOR)
  • Toggle

The configuration of the device and the channels is done using the ETS software via the KNX bus. For the teach-in of the wireless components the keys and the display in the device are used.

  Mounting and connection

The mounting can be done on a wall surface (e.g. brick-work or wood). The mounting holes match for a 55 mm flush-mounted box. The power supply of the device is realized via the bus.

  Repeater function

The repeater function is used for extend distances between sensors and actuators. The KNX ENO 630 is a so-called level-1 radio repeater.

  Bus monitor function

The integrated bus monitor function is used for system diagnostics directly on the device. The device can display both EnOcean telegram as well as KNX telegrams.

  Configuration: KNX ENO Tool

The KNX ENO Tool software can be used to configure the Links between various EnOcean-Sensors and the KNX/EIB EnOcean-Gateway KNX ENO 630/632/634. The device configuration of the Gateway can be read, modified, exported and saved back to either the same or another Gateway. EnOcean Bus Monitor showing the EnOcean Telegrams send over the KNX Bus.
