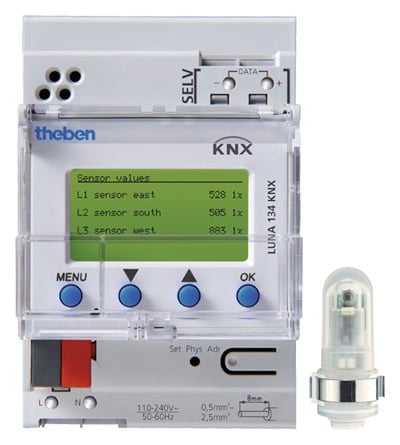

THEBEN LUNA 134 KNX
THEBEN LUNA 134 KNX

THEBEN LUNA 134 KNX (1349200)

Marka : Theben
Fiyat : €0,00  + KDV
KDV Dahil : ₺0,00
TL Fiyat : ₺0,00(KDV Dahil)
  • Light level controller
  • External light sensor included in delivery
  • For brightness-dependent controlling
  • 10 channels
  • 4 threshold values channels for connecting external KNX-sensors (e.g. temperature)
  • 6 logic channels
  • Up to 3 lights sensors can be connected
  • Manual operation on device
  • 4 keys for setting threshold and switch on/off delay
  • DuoFix spring terminals
  • For 2 conductors each
  • Wire or strand (with or without wire end sleeve)
  • Wire diameter: 0.5 - 2.5 mm²
  • Button for releasing plug-in connection
  • Display back light (can be turned off)
  • Thresholds can be shown or changed on display
  • PIN coding

    Technical data

    Operating voltage 110 – 240 V AC Frequency 50 – 60 Hz Operating voltage KNX Bus voltage, ≤10 mA Stand-by consumption ~0,8 W Measuring range brightness 1 – 100000 lx On/off switching delay 0 – 20 min Number of channels 10 Width 3 modules Installation type DIN rail Type of connection Bus connection: KNX bus terminal | Sensor connection: DuoFix spring terminals Max. cable cross section 2 x 0.75 mm² Max. cable length to sensor 100 m Ambient temperature -5 °C … +45 °C Ambient temperature sensor -40 °C … +70 °C Protection class II Type of protection IP 20
