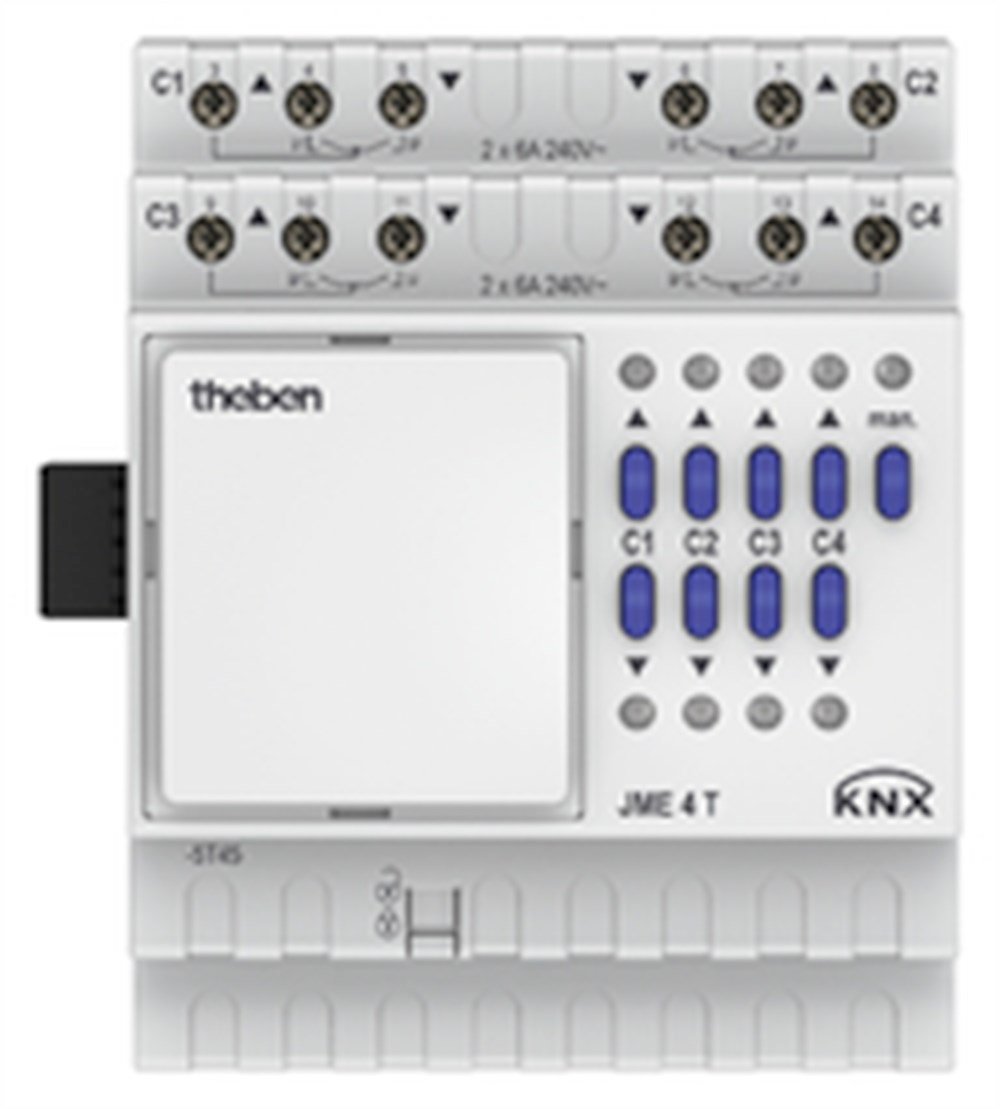

THEBEN JME 4T KNX (4930255)

Description

• 4-way blind actuator MIX2
• Extension module MIX2
• Can be upgraded to maximum of 12 channels
• For controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
• Up to 2 extension modules can be connected to a base module
• Up to two extension modules MIX or MIX2 can be connected to one base module
• Device and KNX bus module can be swapped independently of each other
• Removable KNX bus module enables devices to be changed without reprogramming
• Manual set-up and use of actuators is possible without KNX bus module
• Free combination of switches, dimming, blinds and heating control as well as binary inputs
• For controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
• Manual operation on device (even without bus connection)
• LED Up and Down switching status display for each channel
• Potential-free contacts for Up and Down per channel
• Setting option for phase sequence and running time of device
• Copy function for fast configuration

• Technical data

  Number of channels	4
  Width	4 modules
  Installation type	DIN rail
  Type of connection	Screw terminals
  Max. cable cross section	Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
  Type of contact	NO contact, 6 A
  Switching output	Potential-free, for SELV, if the whole device switches SELV
  Ambient temperature	-5 °C … +45 °C
  Type of protection	IP 20
  Protection class	II according to EN 60 669
