Knx Universal Arabirim 4 Kanal
Knx Universal Arabirim 4 Kanal

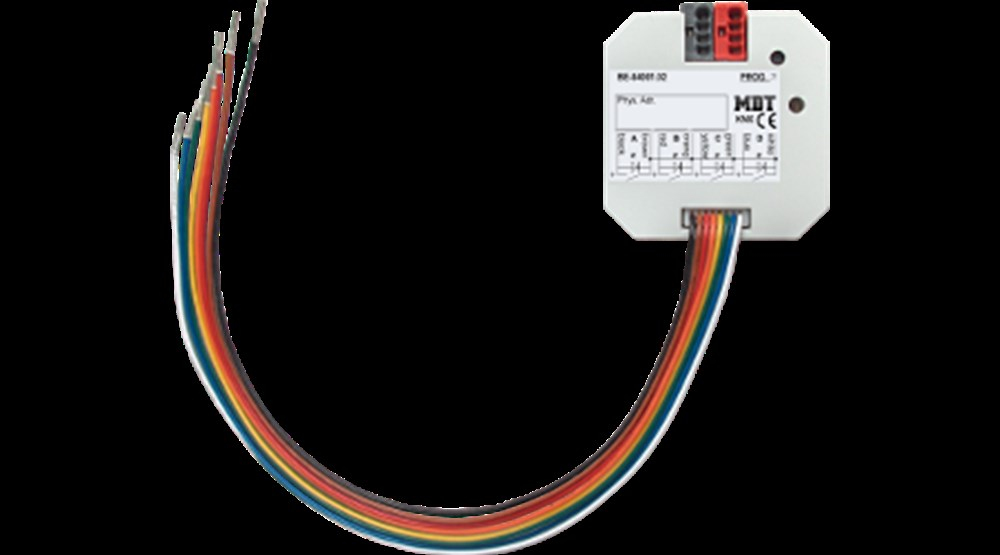

Knx Universal Arabirim 4 Kanal (BE-04001.01)

Marka : Mdt
İndirim Oranı : %4 İndirim
Fiyat : €25,00  + KDV
İndirimli : €24,00  + KDV
KDV Dahil : ₺385,76
TL Fiyat : ₺385,76(KDV Dahil)
₺385,76 'den başlayan taksitlerle

Knx Universal 4 Kanal Arabirim

*Kontak Bilgisi Geri Beslemeli*

  • Production in Germany, certified according to ISO 9001
  • To connect push-buttons or auxiliary contacts
  • Each input can be set as 1,5mA low current output for LED
    (Not with BE-02230.01)
  • New multi touch function, sends up to 4 values/DPTs
    on the same or diffrent objects
  • Innovative group control with long/extra long button press
  • 4 integrated logical modules, e.g. interpretation of the inputs
    (e.g. window closed or sending second object)
  • NO or NC contact operation, programmable length of button push
  • Dimming and shutter function for 1 and 2 button operation
  • Forced setting function for each output
  • Short/long button push with 2 objects
  • Integrated pulse and switching counters with extensive counter functions
  • Cyclical sending of contact state programmable
  • Flush mounted installation (length of connection cables: 22cm)
  • Dimensions (W x H x D): 41mm x 41mm x 12mm
  • Integrated bus coupling unit
